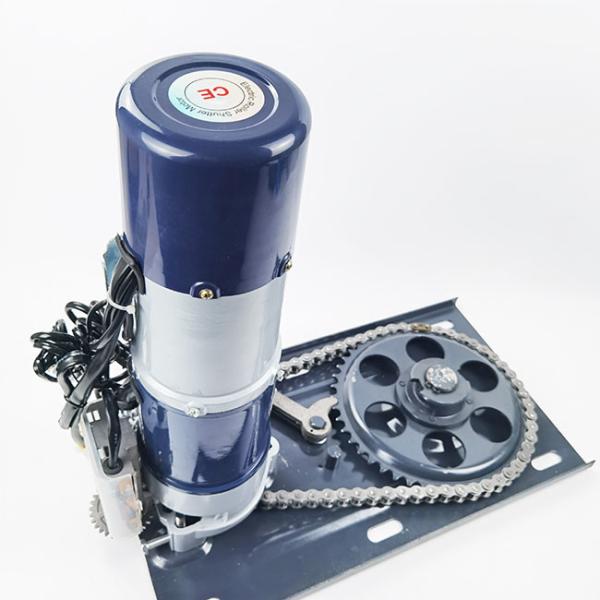

Universal Garage Door 1300kg AC Roller Shutter Motors Commercial Use
GATECH roller shutter motor has been continuously exported for over ten years and is our best selling product, it uses the most advanced production technology and the latest technology available to provide reliability with multiple functions. Known for its quality, this product is easy to install and has proven to be a reliable accessory in a variety of applications. Such as buildings, garages, shopping malls, factories, warehouses, docks, airports, etc.Our rolling door motor has its excellent quality.
1. Optional: copper or aluminum AC electric rolling door motor;
2. Beautiful appearance,advanced structure,strong horsepower;
3. Low noise, small vibration, low power consumption;
4. A motor overheating protection device(140℃);
5. Imported electrical components, security and stability;
6. Lightweight, small size, easy installation, long life and reliable performance;
7. Easy manual operation when power could also be equipped with electrical storage devices;
8. Assembly could be equipped with remote control, to achieve long-range operation.
| Model | Rated output torque (N.m) | Rated output speed (r/min) | Motor power (w) | Rated voltage (V/Hz) | Rated current (A) | Continuos working time(min) | Durm dube outer diameter (mm) | Max lifting force (kg.f) | Max lifting height (m) |
| AC300-1P | 225 | 5.4 | 200 | 220/50 | 2.8 | 8 | 114 | 300 | 6 |
| AC600-1P | 412 | 5.4 | 300 | 220/50 | 3.3 | 8 | 140 | 600 | 6 |
| AC800-1P | 647 | 4 | 400 | 220/50 | 4.7 | 8 | 165 | 800 | 8 |
| AC1000-1P | 809 | 4 | 400 | 220/50 | 4.9 | 8 | 165 | 1000 | 8 |
| AC1500-1P | 809 | 3.5 | 700 | 220/50 | 8.2 | 8 | 165 | 1500 | 9 |

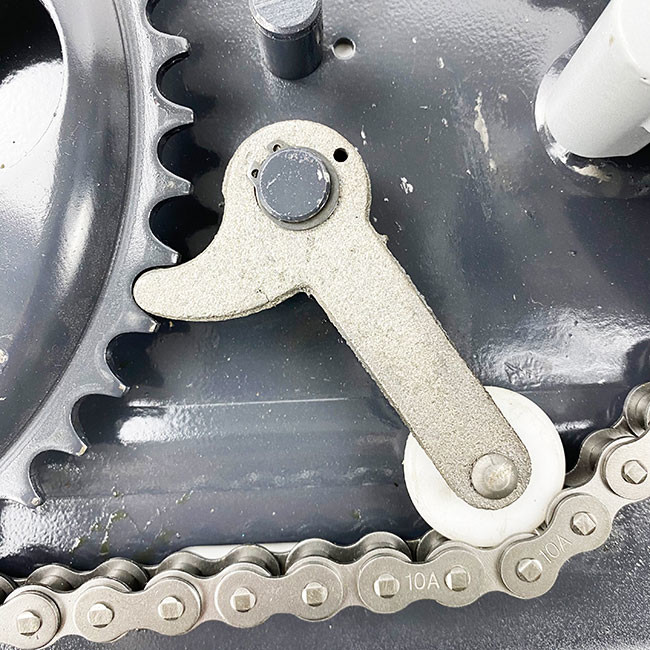

Chain for rolling shutter
FAQ
What is your MOQ?
One unit is available,but it is sample cost. For large quantity,Please negotiable with us.
What is your payment term?
For sample ,T/T in advance.For customize order,35% T/T in advance,balance before shipping.
How long is your product warranty?
Two years when you got goods.
What is the delivery time?
For item in stock, it will take 2-3days to seaport after payment.
Product Tags:
|
|
Copper Wire Roller Garage Door Motor 1300kg Low Noise Blue Brown Images
|
