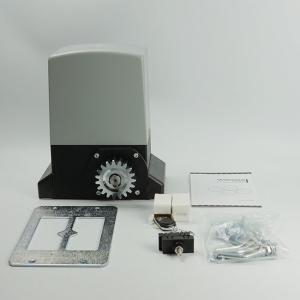

Ac 110v 600kg Automatic Door Operators Home Use
Founded in 2005, GATECH has over 15 years of experience installing thousands of systems, including driveway gates, automatic gates and electric gates for commercial and residential premises.

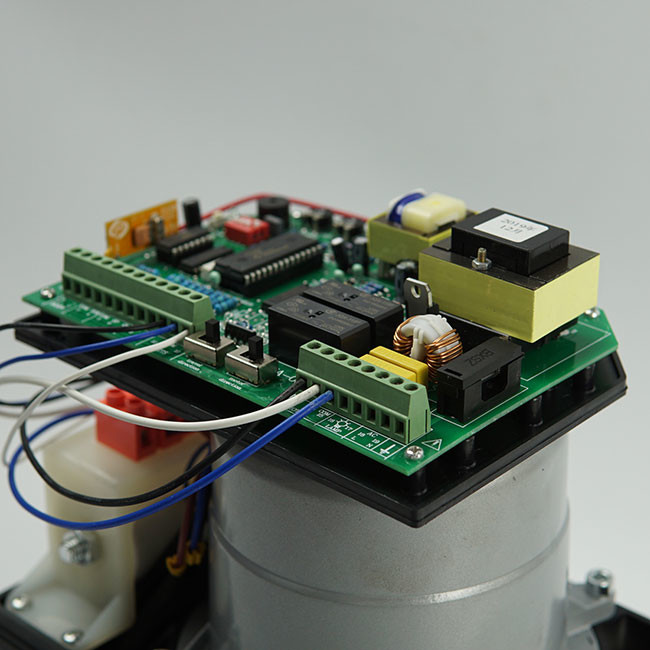

This operator has a compact design and is suitable for residential and light commercial use. New inductive limit switches with magnets on the rack facilitate easy installation. The control panel is designed with additional safety and ease of use in mind. The control board has specific terminals to designate stop, close safety, open safety and safety edge.
| G6 Residential use |
| Power Supply | 110V +/- 10%, 60Hz- Single Phase |
| Power of motor | 250W |
| Output Pinion | 19 Tooth Mod 4 |
| Operating Speed | 12m/min |
| Motor Cooling | Direct Drive Fan (1400RPM) |
| Ambient Temperature Range | From-37'F (-35°C) to 149.F (+65'C) |
| Motor Thermal Protection | Electronic |
| Maximum Gate length | 20m |
| IPRating | 44 |
| Shipping Mass of Unt | 15kg(- 32 Ibs) |
| Maximum Gate Mass | 600kgs (~1323 lbs) |
Auto-reverse on closing if it hits an obstacle
Stopping on opening if it hits an obstacle
Control to stop immediately at any time when the gate is moving
Limit switch N.C/N.O selectable (using micro-switch)
LED indications for easy installation and fault diagnosis
Photocell Electric beam control input available
Adjustable forcing sensing trimmer

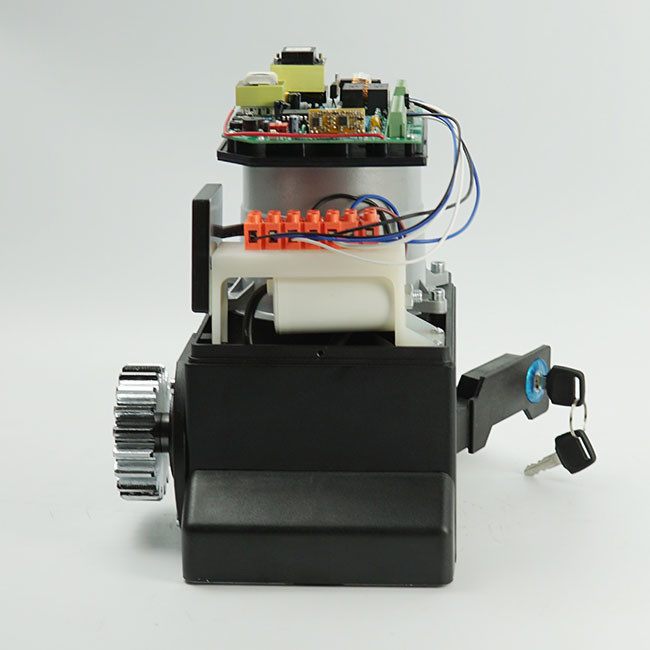

PCB inside of motor with soft start and stop
The gearbox is lubricated, and the coded remote control allows transmission of 30 to 50 meters. This sliding control panel supports photocell input to provide additional safety features, and limit switches can achieve reliable and accurate positioning. The shell is made of high-quality materials with high quality
FAQ
What is the input voltage for this gate motors ?
110V input voltage.
What is the Max weight of gate?
Max weight supporting is 600kgs.
How many models do you have for sliding gate openers ?
G6,G8,G15,G20,G30
What is the frequncy of your remote control for this sliding gate motors?
Remote control models are 433Hz.
What is the longest remote control distance in meters?
Long range distance reach 100m.
How many gate motors can be controlled by a remote control?
4 gate motors for a remote control.
What is your MOQ?
One set is workable, but it is special cost for you.
What is your payment term?
Payment<=5000USD, 100% T/T in advance. Payment>=10000USD, 30% T/T in advance ,balance against of copy of B/L.If you have another questions, pls feel free to contact us.
How long is your product warranty?
2 year warranty
What is the delivery time?
For standard products, 10-25 days are available.
