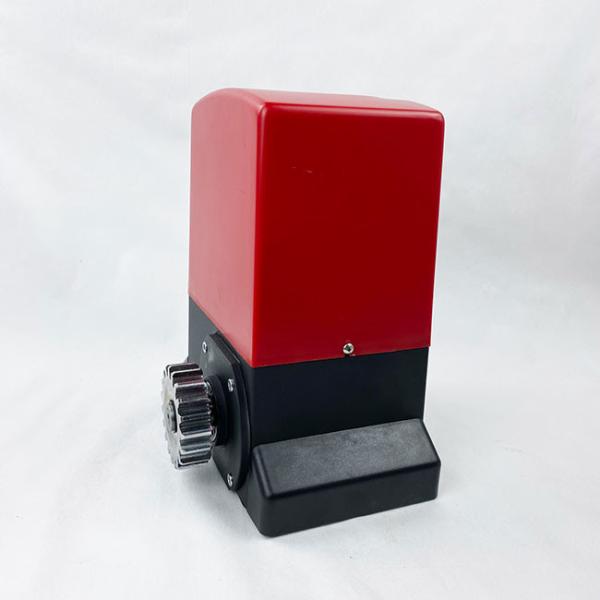

Ac 110v 600kg Automatic Sliding Gate Openers Residential Use
Backed by 17 years or solid marketing experience to meet today's demanding needs. GATECH Systems sets new standards in quality and reliability. Combining high-quality materials with modern technology, GATECH uses international standards to meet the harsh weather conditions they are exposed to, so they can be trusted for their efficiency and superior durability. From actuators designed to provide years of smooth operation to high-speed adjustable motors, or ultra-sensitive transmitters to receivers, GATECH is made with the finest materials to protect your investment.
| G6 Residential use |
| Power Supply | 110V +/- 10%, 60Hz- Single Phase |
| Power of motor | 250W |
| Output Pinion | 19 Tooth Mod 4 |
| Operating Speed | 12m/min |
| Motor Cooling | Direct Drive Fan (1400RPM) |
| Ambient Temperature Range | From-37'F (-35°C) to 149.F (+65'C) |
| Motor Thermal Protection | Electronic |
| Maximum Gate length | 20m |
| IPRating | 44 |
| Shipping Mass of Unt | 15kg(- 32 Ibs) |
| Maximum Gate Mass | 600kgs (~1323 lbs) |
Features:
Electromechanical automation, 230V AC or 400V AC and 24V DC.
Designed for intensive, industrial and collective operations
Easy installation with adjustable fixing plate
Integrated limit switch
Easily unlock the system with a key.
Electromechanical brake for immediate stop function
Internal ventilation for high-intensity work
Oil immersed gear motor.
silent operation

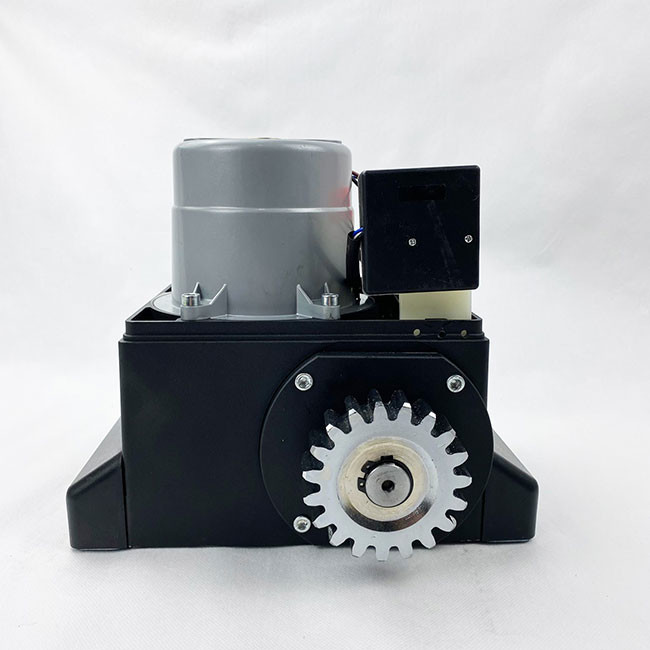

Insdie of motors
The gearbox is lubricated, and the coded remote control allows transmission of 30 to 50 meters. This sliding control panel supports photocell input to provide additional safety features, and limit switches can achieve reliable and accurate positioning. The shell is made of high-quality materials with high quality
FAQ
What is the input voltage for this gate motors ?
110V input voltage.
What is the Max weight of gate?
Max weight supporting is 600kgs.
How many models do you have for sliding gate openers ?
G6,G8,G15,G20,G30
What is the frequncy of your remote control for this sliding gate motors?
Remote control models are 433Hz.
What is the longest remote control distance in meters?
Long range distance reach 100m.
How many gate motors can be controlled by a remote control?
4 gate motors for a remote control.
Is there a requirement for the MOQ?
One unit is available,but it is sample cost. For large quantity,Please negotiable with us.
What is your payment term?
We accept TT, Letter of credit at sight.
How long is your product warranty?
AII our products carry a full 2 years major parts warranty.
What is the delivery time?
Normally within 15 days, depends on the product season and quantity
