Automatic Heavy Duty Fast Sliding Gate Opener Powder Coated

Hangzhou Aayee Technology Co.,Ltd
Contact Now

Automatic Heavy Duty Fast Sliding Gate Opener Powder Coated

  • 1
  • 2

Brand Name : GATECH

Model Number : G15F

Certification : CE

Place of Origin : China

MOQ : 50

Price : Negotiation

Payment Terms : T/T, L/C, Western Union

Supply Ability : 2000 sets per month

Packaging Details : Carton package

Name : 1500Kg Sliding Gate Motor

Open style : Sliding

Color : Blue,Red,White

Material : Aluminum

Type : Entry Doors

Feature : Waterproof

Frame finishing : Powder Coated,Galvanized+PVC Coated

Frame material : Metal

Opening pattern : Automatic

Metal type : Aluminum

Surface treatment : Galvanized

Application : Industrial,Store

Usage : Garden Decoration,Construction site,Hospital

Size : Width 27cmX Height 32cm

Advantage : Easy control, Easy entrance

Alarm lighting : Optional

Contact Now

Fast Ac 110v 1500kg Heavy Duty High Speed Sliding Door Operators Industrial Use

Our sliding gate operators are manufactured to our specifications from years of experience and research - stylish designs, but above all quality parts. We are so confident in the quality of our products that we offer a 1-2 year replacement guarantee depending on the product. We come with tons of accessories to make your gate just the way you like it. From keyboards to security sensors to solar power and more. We also stock all the hardware components needed to automate gates.

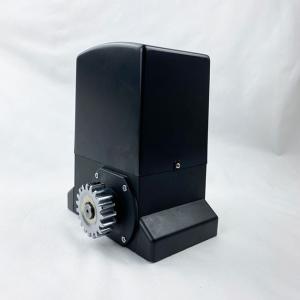

Fast Heavy duty sliding gate motors G15F Industrial Use

Power Supply 110V +/- 10%, 60Hz- Single Phase
Power of motor 550W
Output Pinion 19 Tooth Mod 4
Operating Speed 24m/min
Motor Cooling Direct Drive Fan (1400RPM)
Ambient Temperature Range From-37'F (-35°C) to 149.F (+65'C)
Motor Thermal Protection Electronic
Maximum Gate length 20m
IPRating 44
Shipping Mass of Unit 17 kgs(- 37 Ibs)
Maximum Gate Mass 1000 kgs ~ 1500 kgs ( 2025 lbs ~ 3307 lbs)

By GATECH technology, only two cables can power and control up to one pair of photocells in the Moonbus series.

The kit includes:

1 non-reversible electromechanical gear motor with integrated control unit and electromechanical limit switches.

2 transmitters 433.92MHz, 4 channels.

1 pair of external photocells designed by GATECH for connection

1 flash lamp

External receiver with 400pcs transmitters or 800pcs transmitters for your optional

Fast sliding gate motors advance:

24M/min, it is very fast compare with other gate motors by diffferent opinion and gear motors.

More safe

Quick

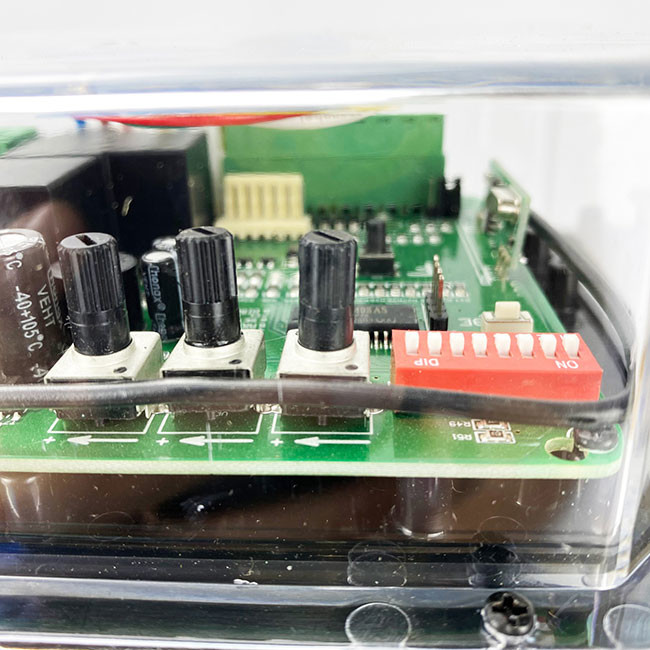

PCB for sliding gate door operators

Automatic Heavy Duty Fast Sliding Gate Opener Powder CoatedAutomatic Heavy Duty Fast Sliding Gate Opener Powder Coated

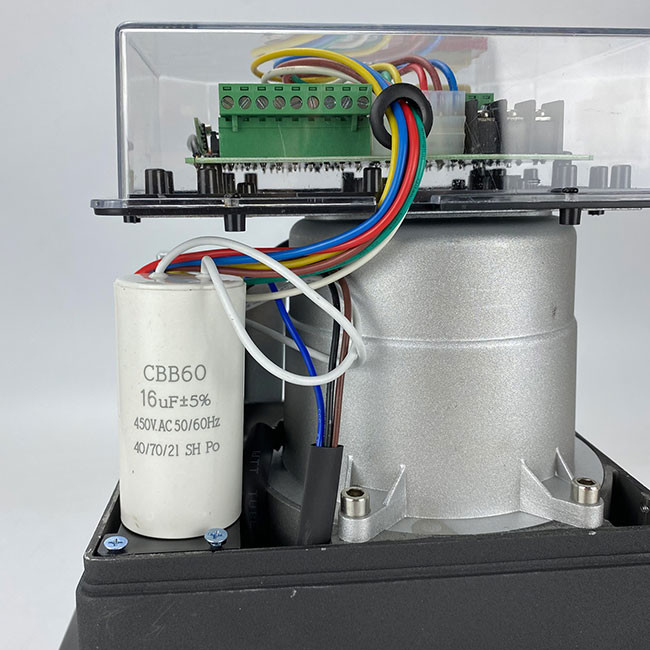

The gearbox is lubricated, and the coded remote control allows transmission of 30 to 50 meters. This sliding control panel supports photocell input to provide additional safety features, and limit switches can achieve reliable and accurate positioning. The shell is made of high-quality materials with high quality

FAQ

What is the input voltage for this gate motors ?

110V input voltage.

What is the Max weight of gate?

Max weight supporting is 1500kgs.

How many models do you have for sliding gate openers ?

G6,G8,G15,G20,G30

What is the frequncy of your remote control for this sliding gate motors?

Remote control models are 433Hz.

What is the longest remote control distance in meters?

Long range distance reach 100m.

How many gate motors can be controlled by a remote control?

4 gate motors for a remote control.

Is there a requirement for the MOQ?

One unit is available,but it is sample cost. For large quantity,Please negotiable with us.

What kind of payments do you support?

Payment<=5000USD, 100% T/T in advance. Payment>=10000USD, 30% T/T in advance ,balance against of copy of B/L.If you have another questions, pls feel free to contact us.

What is your warranty terms?

2 year warranty

How long is your delivery time?

For standard products, 10-25 days are available.
