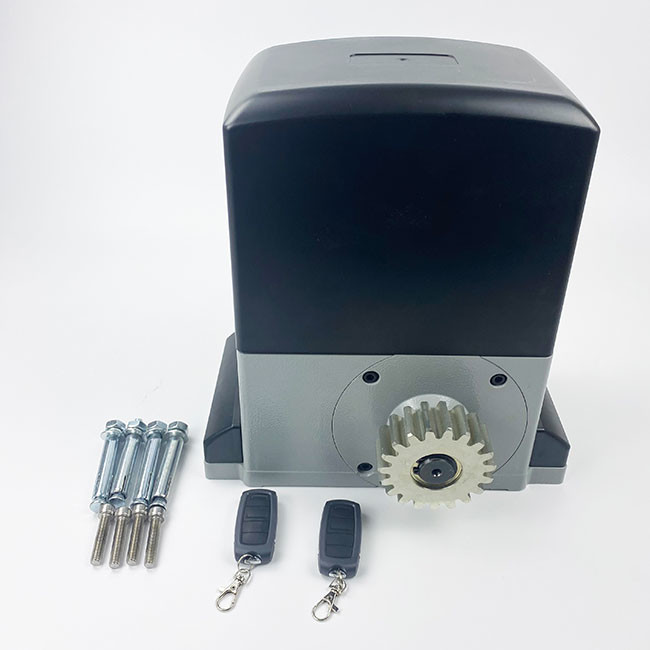

2500kg Heavy Duty Sliding Gate Operator With Built-In Control Board
The 2500 kg all-in-one machine is built-in circuit board, the overall installation is more convenient, the maximum load is less than 2000 kg, and the price is affordable and cost-effective.
electric gate motors,sliding gate motor 2000kg,for electric gate motor price
| Product Name | Heavy duty sliding gate motor |
| Description | G20AC |
| Power supply | 220V+10% 50HZ |
| Power of motor | 500W |
| Motor speed | 1400r/min |
| Max weight of gate | <2500Kg |
| Motor thermal protection | 130℃ |
| Environment temperature range | -20℃ 55℃ |
high power sliding door opener industry gate operator oil hwavy industrial,high power sliding door opener industry gate operator
high power sliding door opener industry gate operator oil,sliding rolling gate opener,sliding door opener industry gate operator,large power sliding gate opener price,sliding automatic gate opener,for automatic sliding swing gate openers operators
Main Features

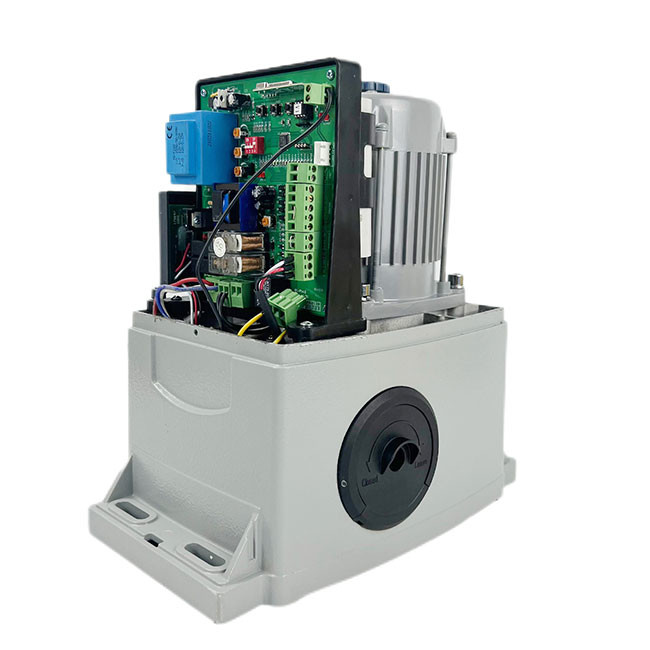

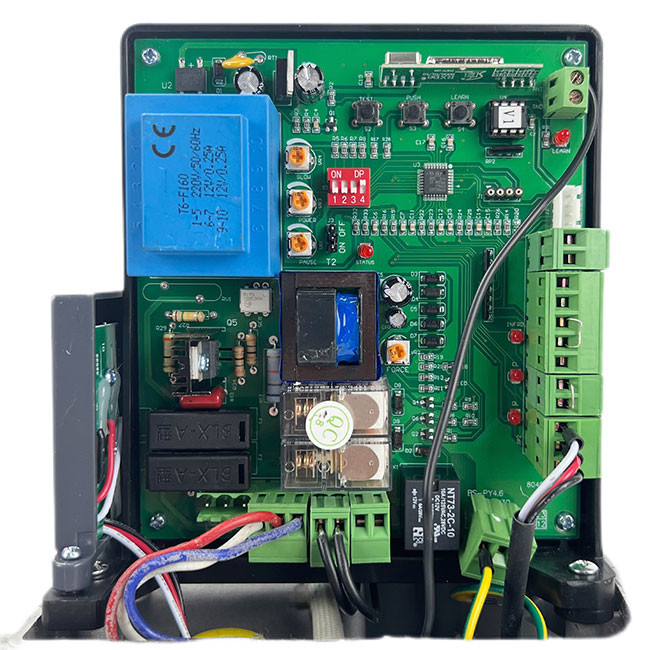

1) Stylish appearance design and built-in control panel, easy installation and extremely compact. No external controller or receiver is required.
2) Built-in limit switch to allow the motor to turn off after the cycle is complete.
3) Built-in manual override with 2 unique override keys provided in case of emergency or power failure.

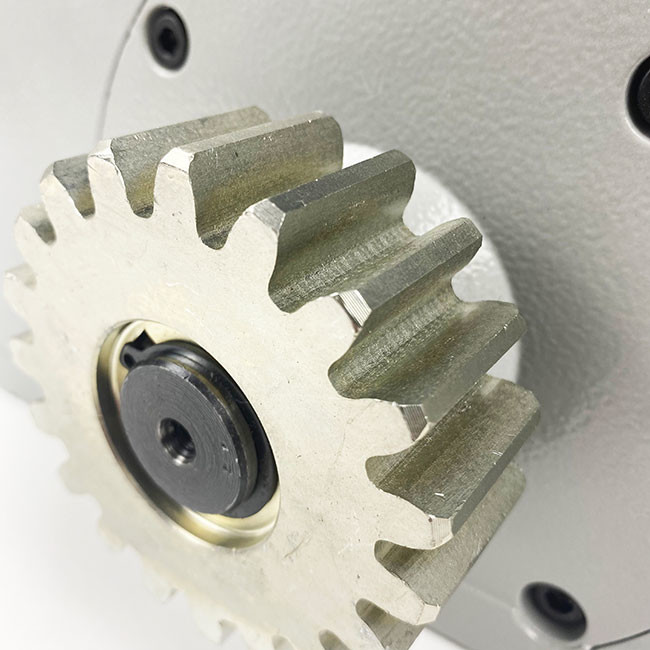

4) The motor is constructed of all-metal gears for durability.
5) Soft start and slow stop.
6) Resistance sensitivity and automatic closing delay time are adjustable.
7) Stop/reverse when an obstacle is encountered during door opening/closing.
8) Reliable mechanical spring limit or magnetic limit is optional.
9) 12 months warranty, lifetime after-sale service.
Packaging Details: Standard Exporting Packing
Measurement of carton box: 34*28*42 cm
Weight : 20KG
FAQ:
Communication with customers:
1 The motor runs but the sliding gate operator doesn't work.
A: Check whether the clutch is closed.
2 The power indicator light doesn't flash and the key doesn't
react.
A: Check whether power is connected right.
B: Check whether the fusel is burned, it yes, please exchange it.
3 The opening and closing limit can not work.
A: Check whether the limit adjustment switch is installed right.
B: Check whether the limit iron is installed right. Adjust the
position of the limit iron.
4 Crash proof is not effective.
A: Check whether the connection of crash proof is correct.
B: Check whether the photocell is installed right.
C: Check whether the connection of the wire of the loop
detector is right .
5 When the gate just close up, it turns to open.
A: Check whether the voltage is normal.
B: If the crash proof equipment is installed, please check
whether it works well.
6 The remote control doesn't work
A: Check whether the battery is low. If yes, change it.
B: Check whether the code of the remote control is the same
with the code of the control panel.
